Description

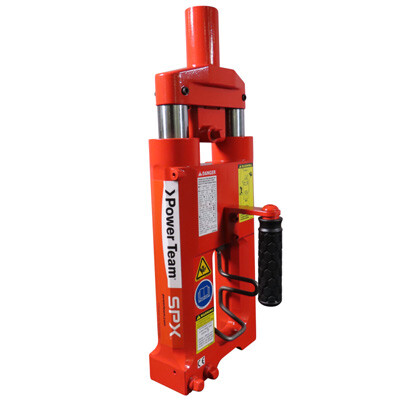

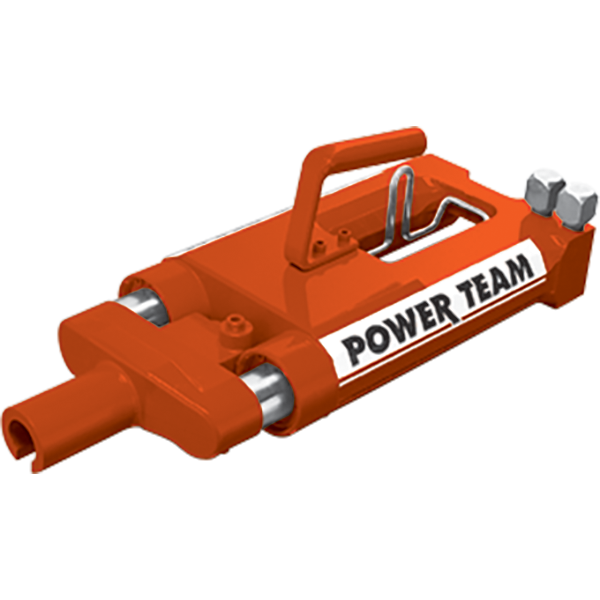

Power Team Monostrand Stressing Jacks are the most durable in the industry.
- Ideally suited for work on slab-on-grade where dirt, heat and high volume use take their toll.
- Available in single or double-acting models.
- Standard single-acting units have a 10″ stroke. Other stroke lengths are available on special order.
- Dead-end seaters for production work and field work available on special order. (Part #400120)
- Service repair is simple; components are long lasting and easily replaced.
- 3″ detachable seater nose assembly easily replaced with optional 6″ nose assembly.
- The jack of choice for highrise and elevated work, thanks to fast return time and light weight.
- All hydraulic fluid controls are internal; more efficient and safer operation during tensioning and retraction.
- Standard double-acting units have an 8 1/2″ stroke; others available on special order.
- Specially designed Power Team Control Valves are available for post tensioning jacks.
| Order No. |
Description | Cyl. Cap. (tons) |
Stroke (in.) |
Seater Type |
Internal Pressure at Cap. |
Tons at 10,000 psi |
Weight (lbs.) |
|---|---|---|---|---|---|---|---|
| SJ2010DA | Double-acting post tension jack with power seater, 0.50″ strand. | 20 | 8 1/2 | Power | 7,575 | 26.4 | 42.0 |
| Order No. |
Recommended Pumps for this Stressing Jack |
Oil Cap. (cu. in.) |
Strand Dia. (in.) |
|---|---|---|---|
| SJ2010DA | PE554PT/PE604PT | 53.0 | .375-.50 |
| Order No. |
A (in.) |
B (in.) |
C (in.) |
Weight (lbs.) |
|---|---|---|---|---|
| SJ2010DA | 18 ½ | 7 ½ | 6 ½ | 45 |
