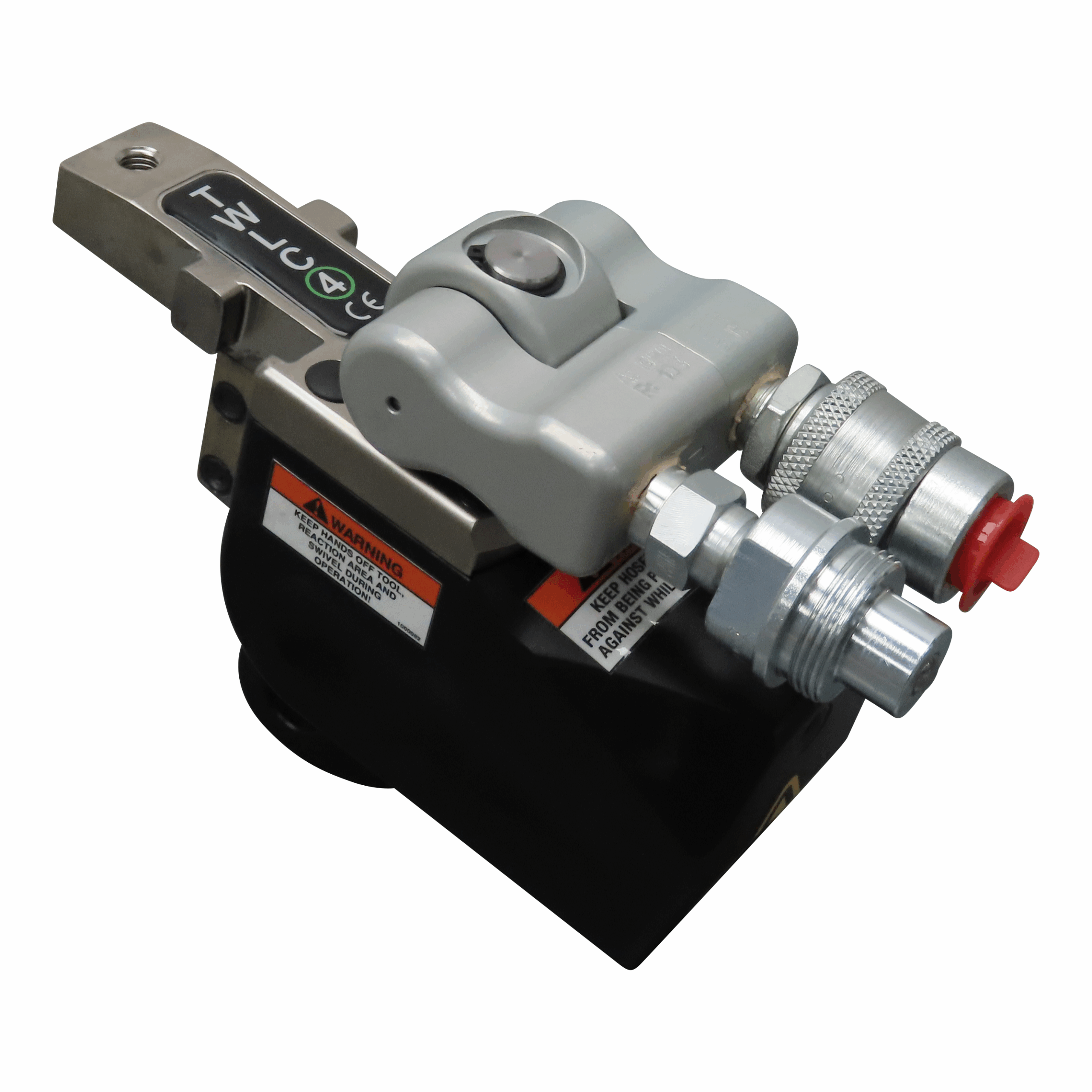

Power Team TWLC 15 Low Clearance Pancake Wrench

Power Team TWLC 15 Low Clearance Pancake Wrench

$6,795.00

TORQUE WRENCH LOW CLEARANCE

The Bolting Systems TWLC series wrench is a lightweight tool featuring low height and a tight nose radius. The TWLC series wrench was designed for the most inaccessible bolting areas found in industry.

  • Overall Length
    12.00 in
  • Torque Range (N-m)
    2416.1 to 20133.9 N-m
  • Torque Range (ft-lbs)
    1782 to 14850 ft-lbs
  • Torque Range (in-lbs)
    21384 to 256608 in-lbs
  • Wrench Type
    Hydraulic – Low Clearance



  • Low Weight, High Strength Design
  • Superior Torsional Strength
  • Fast Operation Cycle
  • Fine Tooth Pawl
  • Floating Piston Design
  • Auto-Connect Drive Piston
  • Compact Frame Size
  • Rigid Steel Body Construction
  • Internal swivel manifold Relief
  • Built-in Reaction Pad
  • Small Nose Radius
  • Tool Free Link Change
  • Corrosion Resistant Finish
  • Multi-Axis High Flow Swivel Manifold
  • Simple Design
  • Consistent Torque Output
  • Powerthon™ Lifetime Warranty

View Catalog – TWLC Series

Pressure-Torque Conversion Chart

Categories: ,

Description

Bolting TWLC15

TORQUE WRENCH, LOW CLEAR 14,500 FT LBS

Links sold separately

Bolting 11.000 lbs

  • Dynamic engineering modeling (FEA) optimized tool design to extend life and durability
  • The SlimLine links use the same quick change Drive Body as the existing TWLC links
  • Small nose radius, fits all standard API and ANSI flanges
  • Rigid steel body construction with corrosion resistant plating
  • Fully enclosed drive mechanism for operator safety
  • Swivel manifold has an internal relief valve to prevent retract side overpressurization
  • Multi-Swivel technology for free positioning of tool and hoses
  • The Drive Body is designed to interchange with the TWLC (Low Clearance) and the new TWSL (SlimLine) Links, lowering your tool investment across each series to broaden your application reach.
  • The TWSL’s narrow width and reduced radius design enables the tool to fit into tight areas where standard low clearance links cannot.

Low Clearance

Torque Wrench

TWLC Series

Yes
